Rapid Drying Machine for Saponification Soap Cooler The Drum Flaker for Saponification Liquid Soap Base Dryer

Rapid Rrying Machine for Saponification Soap Cooler The Drum Flaker for Saponification Liquid Soap Base Dryer

Product Description:

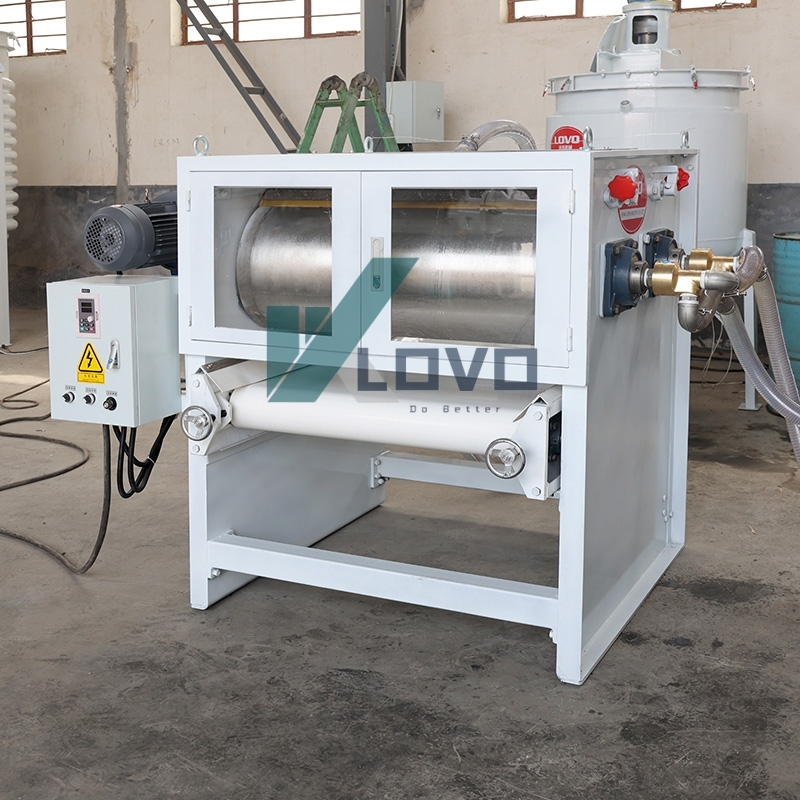

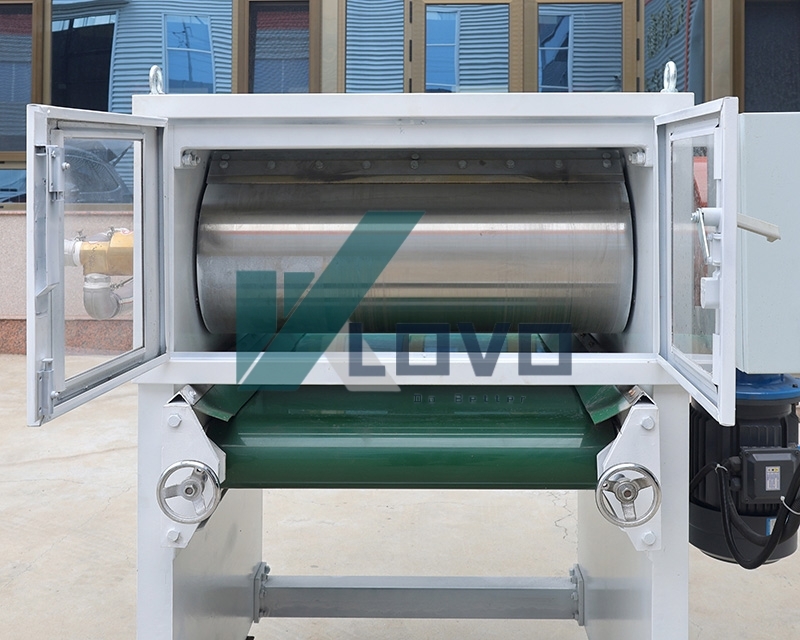

The Cold Roller Machine is a simple and reliable machine that cools and solidifies into flakes liquid neat soap, soap/syndet (“combo”), and syndet products. It has two special, counter-rotating stainless steel rolls equipped with an internal cooling jacket. Cold water is conveyed through a spiral pattern all around the inner surface of the drum to grant uniform heat transmission.

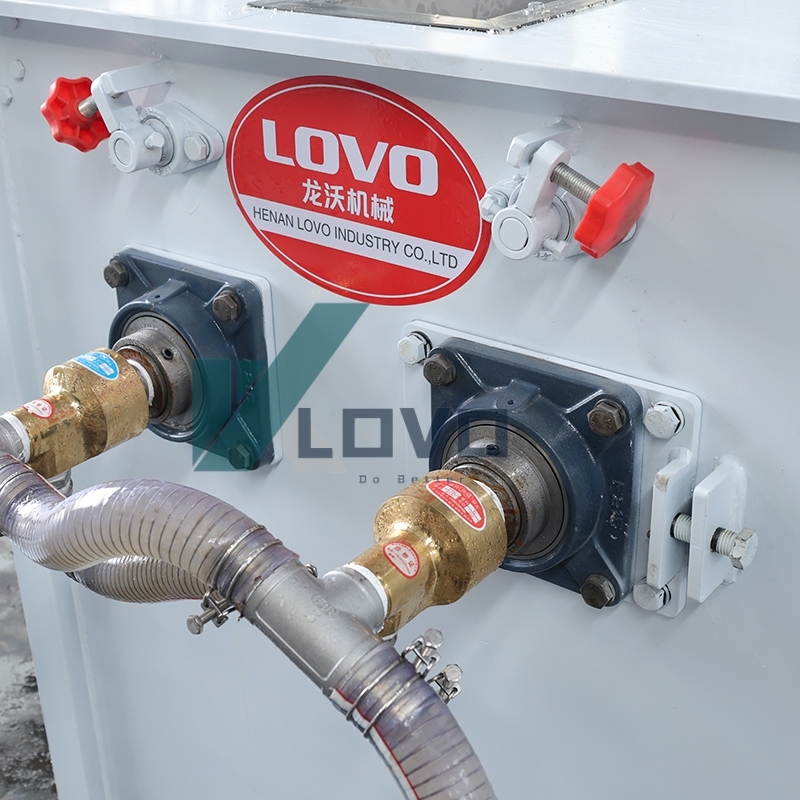

The rollers are equipped with rotary joints for proper water distribution and consistent water recycling in a closed circuit when using a water chiller.

Separate motor-reducers drive each drum and the product discharge conveyor. These independent drives allow easy maintenance and flexibility of operation. Liquid soap or syndet slurry is pumped on the rolls that spread it evenly among them, in a 0,3 — 0,5 mm thick layer that is quickly cooled down and solidified. The product is then scraped off the rolls by the doctor blades in the form of flakes and falls onto a discharge conveyor belt.

Features:

• Product Name: Cold Roller Machine
• Color: Customizable
• Power Consumption: 3-6kW
• Capacity: 300-2000kg/h
• It is easy to operate and highly efficient.

Technical Parameters:

Customization:

Customizable options: color, voltage, production capacity, soap size and style

Henan LOVO Industry Co.,LTD is a professional machine manufacturer with more than 42 year's soap equipment production experience, which specializes in manufacturing large,medium and small sized soap making machines. we can provide complete sets of laundry soap producing line and toilet soap producing line, soap saponification process plant, soap mixer, soap refiner machine, vacuum type soap plodder machine,soap stamp machine and soap cut machine, liquid soap machine, detergent soap machine, soap package machine and so on We have passed the certification of CE and other Certification in China, we can supply other certification like PVOC, SONCAP, COC, ECNT, Help customer to import the goods.

1. How did the 500kg/h soap line achieve 700kg/h actual output?

The line is designed with high efficiency components and optimized workflow. With proper raw material preparation and skilled operation, the actual output can exceed rated capacity by 30–40%. This Ethiopian customer achieved 700kg/h through consistent operation.

2. What type of soap does this line produce?

This line produces both laundry soap bars and toilet soap bars. The Ethiopian customer is producing both types for local distribution. Simple mold and formulation changes switch between products.

3. Is this performance typical for all customers?

Many customers achieve 10–30% above rated capacity. The 40% achievement in Ethiopia is excellent and demonstrates the line's potential with good raw materials and trained operators.

4. Can this line be shipped to Ethiopia?

Yes. We ship to Addis Ababa via Djibouti port regularly. Delivery time is typically 40–60 days. We handle export documentation for smooth Ethiopian customs clearance.

5. Do you provide support for Ethiopian customers?

Yes. We provide:

• Video installation guidance and manual

• Engineer on-site option available

• 12 months warranty and spare parts

• Formulation guidance for local Ethiopian soap recipes
