304 Stainless Steel Continuous Soap Saponification Plant – Cold Roller Drying System for Soap Noodle Production
Product Description
Overview
Our cold roll dryer represents a breakthrough in soap drying technology, instantly converting saponified liquid into dry, uniform flakes – eliminating the traditional 7-day air drying process and overcoming production bottlenecks. This compact, high-efficiency system significantly reduces drying time from days to seconds, enabling continuous, uninterrupted soap noodle production.

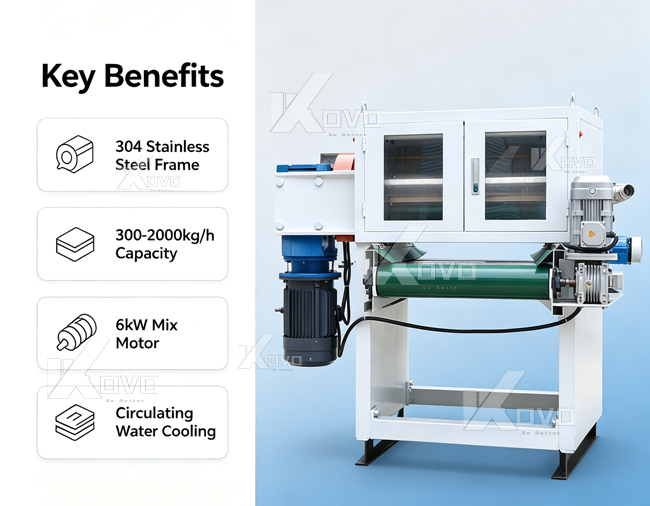

Key Features
Precision Speed Control
Each drum and conveyor is independently driven by variable-frequency motor-reducer units, allowing precise speed adjustment for optimal process control. This flexible drive arrangement enables independent drum speed regulation, allowing operators to fine-tune flake thickness and production output without affecting other line components.
Robust Construction
The frame is constructed from national-standard channel steel, providing exceptional structural rigidity and stability under continuous heavy-load operation. The main rollers are manufactured from SS304 stainless steel, offering excellent corrosion resistance, hygiene compliance, and long-term durability even with aggressive soap formulations.
Patented Technology
As a patented product developed and manufactured by the original equipment manufacturer, our cold roll dryer incorporates proprietary design innovations that deliver superior drying performance, energy efficiency, and operational reliability.
Low Maintenance Design
The system features no vulnerable wearing parts, significantly reducing maintenance requirements and downtime. Each component can be serviced individually without stopping the entire production line, minimizing production interruptions and lowering overall operating costs.
Competitive Advantages
-
Multiple capacity options – available from 200 kg/h to 5000 kg/h
-
Energy efficient – low power consumption compared to spray drying
-
Space saving – compact footprint, fits into existing production layouts
-
Factory direct pricing – competitive prices from the original manufacturer
-
Integrity first – transparent communication, reliable after-sales support
Machine parameters
|

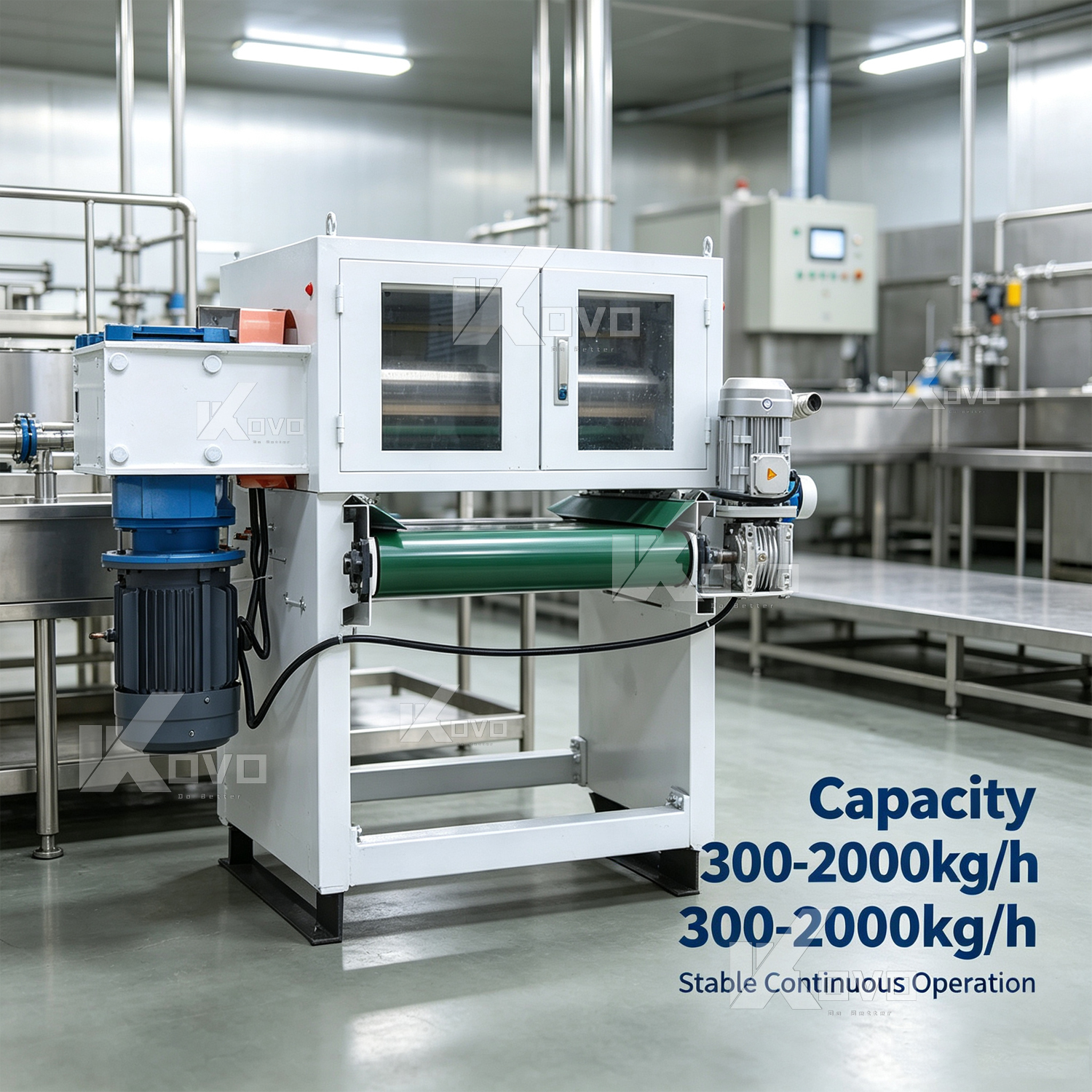

Capacity
|
300-2000kg/h
|
|
Mix motor
|
6kw
|
|
Cooling method
|
Circulating water cooling, with rotary joints.
|
|
Support structure
|
Support structure:
|
|

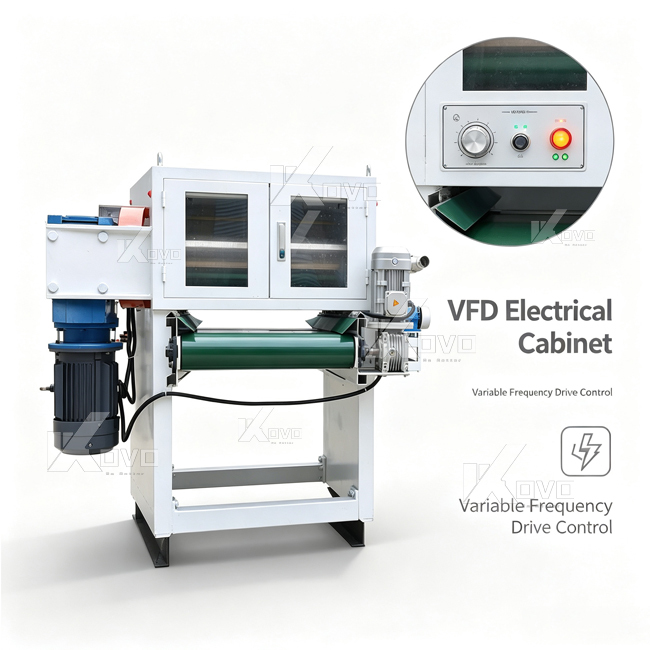

Electrical cabinet
|
Variable frequency drive (VFD) electrical cabinet
|

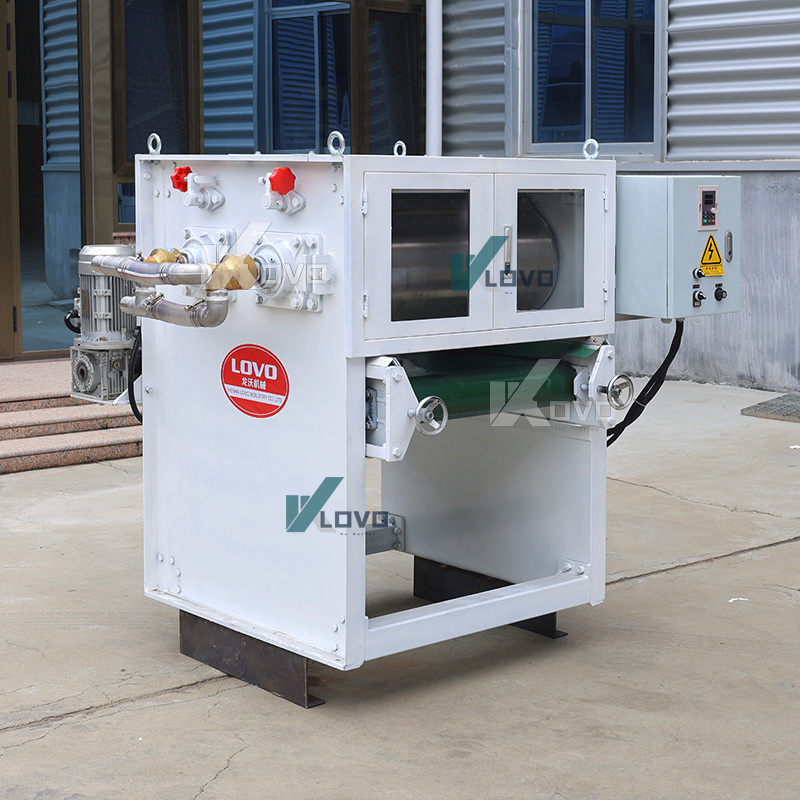

Product Showcase
FAQs
1. What is the difference between cold roller drying and spray drying?
Cold roller drying solidifies soap by cooling, using much less energy. Spray drying uses hot air to evaporate water, consuming more energy. Cold roller drying also produces denser soap flakes, which are better for downstream pressing and extrusion processes.
2. Can the soap flake thickness be controlled?
Yes. Flake thickness is adjustable from 0.3mm to 1.5mm by regulating the drum speed and doctor blade clearance. This allows you to produce flakes suitable for different downstream processes.
3. How does the cooling water system work?
The system uses a closed-loop cooling circuit with an integrated cooling tower or chiller. Water temperature is maintained at 4-10°C, keeping the drum surface at a constant 10-20°C for optimal solidification.
4. How much floor space does the system require?
A typical 1000kg/h configuration requires approximately 15-20 square meters with a height of about 3.5 meters. This saves over 80% of the floor space compared to traditional drying rooms.
5. What is the lead time for delivery?
Standard models require 60-90 days for delivery, including design, manufacturing, factory testing, and sea-worthy packaging. Installation and commissioning take approximately 7-10 days on-site.
